OPUS A3e

A lot of technology – at a low investment cost. This slogan fittingly describes the OPUS A3e. This full-value operator console features a 4.3” screen with 480 x 272 pixels and is optionally available with a touchscreen display. A further plus point of the OPUSA3e is its weight: less than 1kg.

Inside is a powerful and reliable 32-bit, 532 MHz processor, with memory option ranging from a minimum of 512 MB, up to 1 GB. Equipped with a multi-color LED, 4 analogue or digital inputs, 2 CANbus ports and a full-speed USB 2.0 interface, this low-cost unit is not lacking in functionality. The OPUS A3e: high performance at an entry-level price.

Acoustic Alarm

To assure reliable monitoring, the full line version of the OPUS A3e features an acoustic alarm with an output of up to 65 dBA. This makes it particularly suitable as a parameterisation unit, and it uses the trusted Embedded Linux operating system.

You can count on it: the OPUS A3e offers the best price-to-performance ratio available on the market in its class.

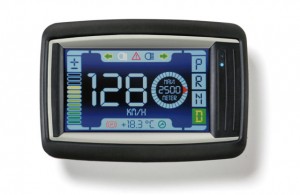

Photogallery

Technical Data

Housing
Orientation landscape or portrait
W142 x H98 x D43 mm
excl. connector and cables

Memory
256 MB DDR2 RAM
1 GB NAND flash

Audio
na

Real Time Clock
Buffered by battery

Advanced Programming Environment
C/C++

Display
4.3″, 15:9 TFT transmissive
480 x 272 px, 400 cd/m2
Contrast ratio 400:1

User Interface
Analog-resistive touchscreen

Wireless
na

Environmental Conditions
Temperatures
operating -30° to +65°C
storage -40° to +85°C
Protection IP 65
Vibration 5g, Shock 30g

Certificates
CE mark

Signals
Multi-color LED
Piezo alarm, approx. 60 dB(A)

Interfaces
2 x CANbus ISO 11898
CAN specification 2.0 B active
Ethernet 10/100 Mbit/s Base-T
1 RS-232 (RxD, TxD, GND only)
Analog/Digital I/O:
4 analog/digital inputs,
3 digital outputs
1 USB 2.0 full speed
Light sensor

Power Supply
9 … 36 V DC

Programming Environment
Wachendorff Projektor-Tool
for Windows®
CODESYS V3
ISO-VT

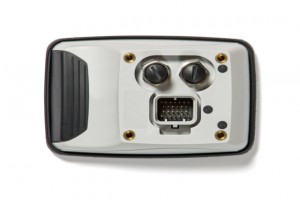

Connectors
Main: AMP Seal, 26 pin
Video: M12 round, 5 pole, b-coded
Ethernet: M12 round, 4 pole, d-coded

Processor
32-bit, 532 MHz
Freescale® I.MX35™

Video
1 composite CCITT video input
PAL 50 Hz color coding/NTSC
1 Vpp, 75 Ohm

Operating System
Embedded Linux®

Supported Protocols
CANopen®
CANfreestyle
J1939
