OPUS A8s_en

The OPUS A8s sets new standards. Its high-resolution, 12.1” screen and aluminium casing give this model a high-class, modern look that you can take with you anywhere.

In the full line range, the OPUS A8 features 1024 MB of RAM and two CANbus ports. Three analog video inputs, four D/A inputs and three digital outputs add further convenience. The device also has Bluetooth, an audio output and an USB port on the front of the panel for even greater connectivity.

For situations requiring fewer connections, the basic line is a good choice. This has the same visual appearance, but differs in the technical features that it offers.

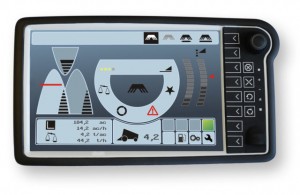

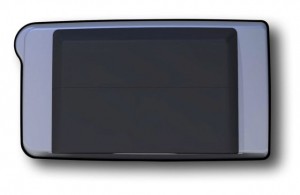

Photogallery:

Technical Data

Housing
Orientation landscape or portrait
W376 x H214 x D76 mm
excl. connector and cables

Memory
1024 MB DDR2 RAM
8 GB NAND flash

Audio
1 x Audio output (left, right, GND)
AC 97 compatible
Output power: approx. 50 mW

Real Time Clock
Buffered by goldcap

Advanced Programming Environment
C/C++

Display
12.1″, 16:9 TFT transmissive
1280 x 800 px , 400 cd/m2
Contrast ratio 1000:1

User Interface
8 softkeys
4 hardkeys
Analog-resistive
glass/glass touchscreen

Wireless
Bluetooth® 2.0, Class 2

Environmental Conditions
Temperatures
operating -30° to +65°C
storage -40° to +85°C
Protection IP 65
Vibration 5g, Shock 30g

Certificates
CE mark

Signals
1 multi-color LED
3 status LED’s
Speaker

Interfaces
2 x CANbus ISO 11898
CAN specification 2.0 B active
1 x RS-232 (RxD, TxD, GND only)
Gigabit ethernet 10/100/1000 Mbit/s Base-T
Analog/Digital I/O:
4 analog/digital inputs,
3 digital outputs
1 USB 2.0 full speed on main connector
1 USB 2.0 high speed on front

Power Supply
9 … 36 V DC

Programming Environment
Wachendorff Projektor-Tool for Windows®
CODESYS V3
ISO-VT

Connectors
Main: AMP Seal, 26 pin
Video: M12 round, 5 pole, b-coded
Ethernet: M12 round, 4 pole, d-coded

Processor
32-bit, 850 MHz
Freescale® I.MX6™ quad

Video
3 composite CCITT video inputs
PAL 50 Hz color coding/NTSC
1 Vpp, 75 Ohm

Operating System
Embedded Linux®

Supported Protocols
CANopen®
CANfreestyle
J1939
